Main Features

• Highly flexible ProxFusion® device
• Self-/Mutual-capacitive sensors configuration for device wake-up
• Ultra Low Power (ULP) wake-up on touch
• RF immunity
• Sensor flexibility:
  • Automatic sensor tuning for optimal sensitivity
  • Internal voltage regulator
  • On-chip noise filtering
  • Detection debounce and hysteresis
  • Wide range of capacitance detection
• I2C communication interface with IRQ/RDY, up to Fast-Mode Plus (1 MHz)
• QFN52 (6×6×0.75 mm) – 0.35 mm pitch
• Wide input voltage supply range: 2.2 V to 3.5 V > Wide operating temperature range: −40 °C to +85°C

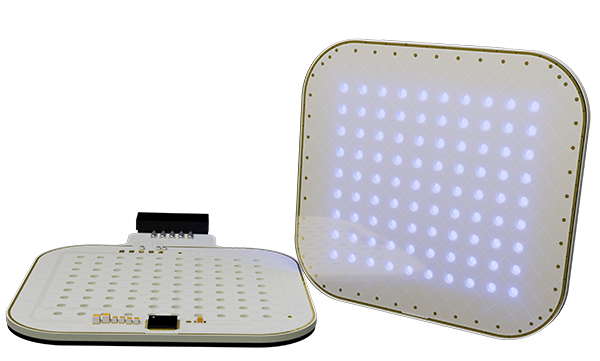

• Trackpad
  • Up to 7 fingers tracking
  • High-resolution coordinate outputs
  • Fast response
  • Individual touch sensor
  • Snap dome detection
  • Integrated touch size output (area and strength) for touch integrity
  • Multi-finger gesture recognition engine
  • Electrode mapping for optimal PCB layout
  • Configurable coordinate resolution and orientation
  • Compatible with a wide range of overlay materials and thicknesses
  • Compatible with multiple 1- and 2-layer sensor patterns
  • Adjustable sensing frequency offset for limiting potential interference
  • No calibration required - systems automatically compensated for mechanical & temperature changes
• Design and manufacturing support
  • Touch pattern layout drawing
  • Full FPC layout package (example & customized)
  • Test guide for touch pattern
  • RFI immunity design support >
• Design simplicity
  • PC GUI software for debugging and obtaining optimal performance
  • Easily obtain setup defaults from the GUI header file export
  • No production line calibration required
  • EEPROM compatibility for default settings storage for auto-startup
