PXM0091

Azoteq Pxm0091

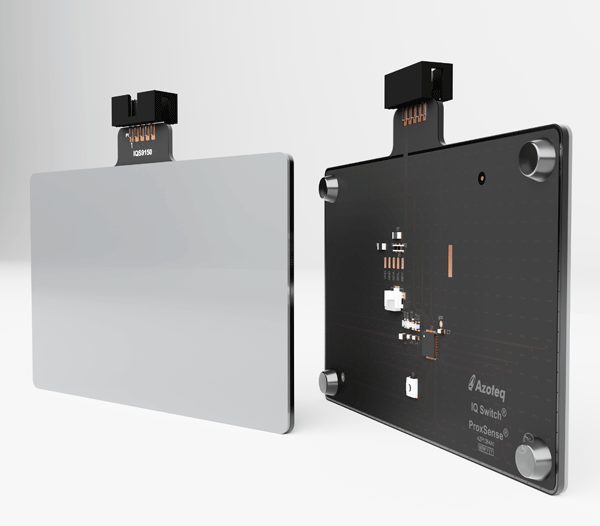

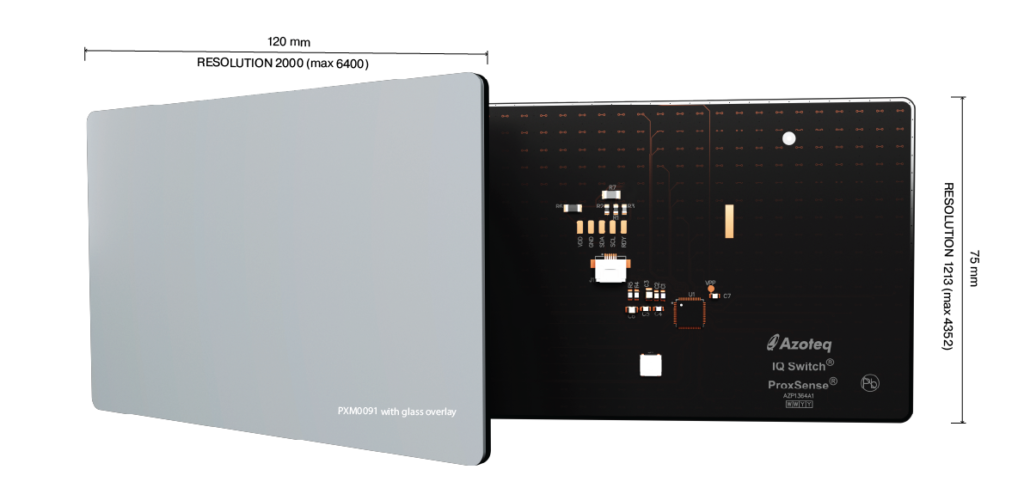

The IQS9150 is a generic and configurable trackpad device aimed at being suitable for numerous design variations and requirements. The PXM0091 utilizes the IQS9150 to provide high-performance multi-touch (linearity, accuracy, low-noise) trackpad outputs, switch input, and an on-chip gesture recognition engine. The PXM0091 features best-in-class sensitivity, signal-to-noise ratio, and automatic tuning of electrodes. The PXM0091 also has user-configurable virtual buttons, sliders, and wheels that can be superimposed onto the trackpad area, with easy-to-integrate virtual sensor outputs. Low-power proximity detection allows extremely low-power operation.

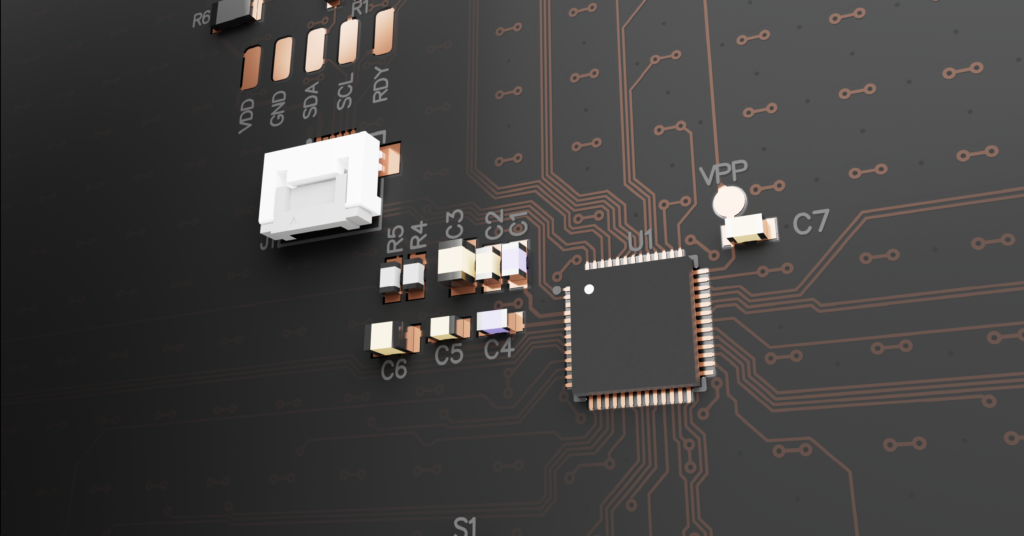

Artboard 1 1iqs9150post

OVERVIEW

Main Features

XY coordinate calculation
Self-/Mutual-capacitive sensor configuration for the device
Ultra Low Power (ULP) wake-up on touch
Automatic recalibration for environmental changes
1 & 2 Finger Gesture Detection
- Swipe
- Tap, Double Tap and Triple Tap
- Press & Hold
- Pinch & Zoom
- Scroll Gestures
I²C communication interface with IRQ/RDY, up to Fast-Mode Plus (1 MHz)
Low Power, suitable for battery applications
Wide input voltage supply range: 2.2 V to 3.5 V
Trackpad
- Up to 7 fingers tracking
- High-resolution coordinate outputs
- Fast response
- Individual touch sensors
- Integrated touch size output (area and strength) for touch integrity
- Multi-finger gesture recognition engine
- Configurable coordinate resolution and orientation
- Compatible with a wide range of overlay materials and thicknesses
- Adjustable sensing frequency offset for limiting potential interference
- No calibration is required; systems automatically compensate for mechanical & temperature changes
- Virtual sensors:
  - Configurable virtual button, slider, and wheel sensors
  - Change sensor locations and sizes without electrode
  - changes required
  - Up to 16 virtual buttons
  - Up to 8 virtual sliders
  - Up to 4 virtual wheels
